Modular Type Electrolysis System

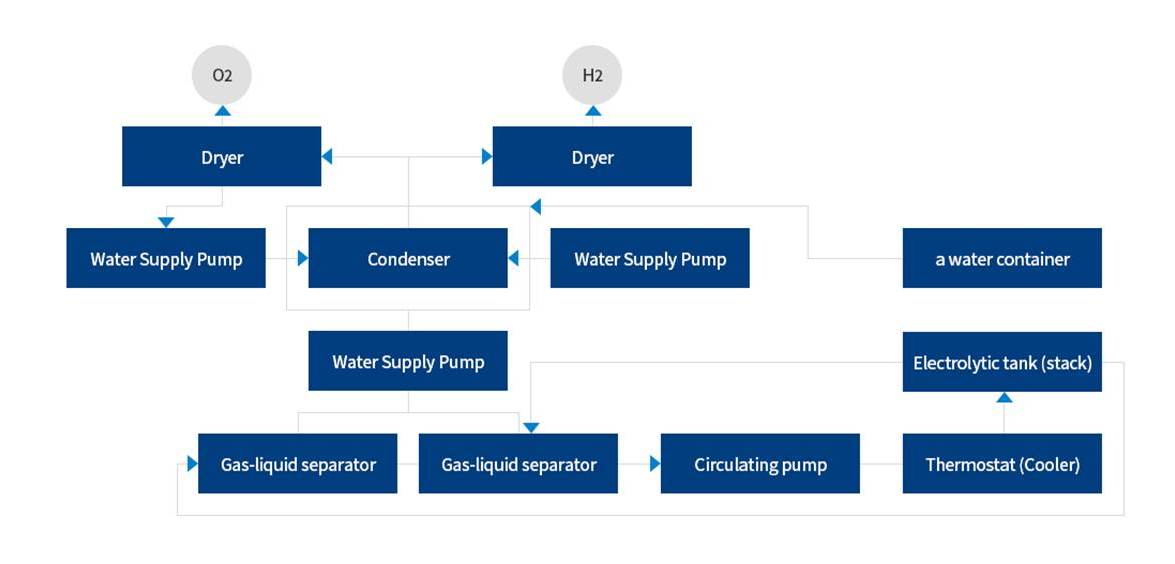

watherElectroy chart

Electrolysis devices require drives as well as stacks.

Stack module configuration

Accepts a wide range of power from 300W to 100kW Advantageous replacement of the stack

System module configuration

Optimized Efficiency Ease of maintenance Economical price

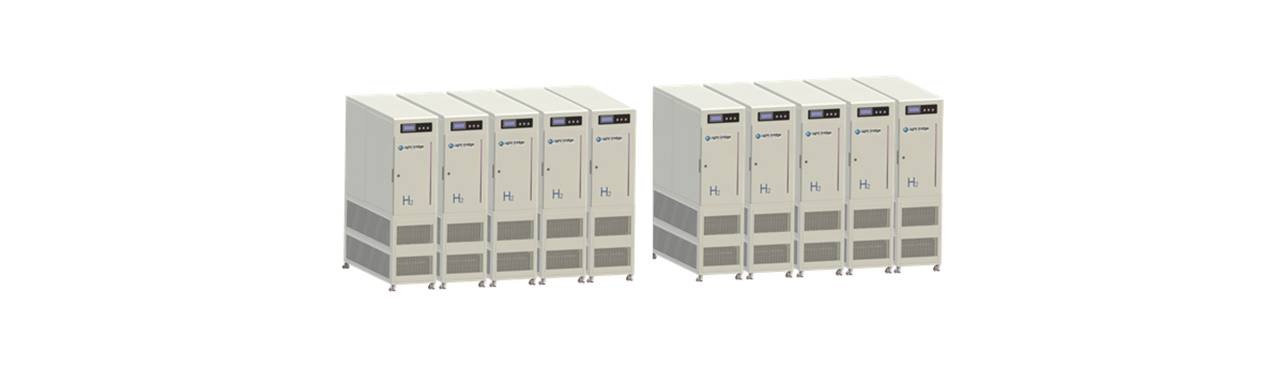

Electrolysis Module Scale Up

Modular Water Electrolysis System Expansion

First

It is possible to cut costs

Second

be scalable

Third

It is easy to maintain

Fourth

Mass production is possible

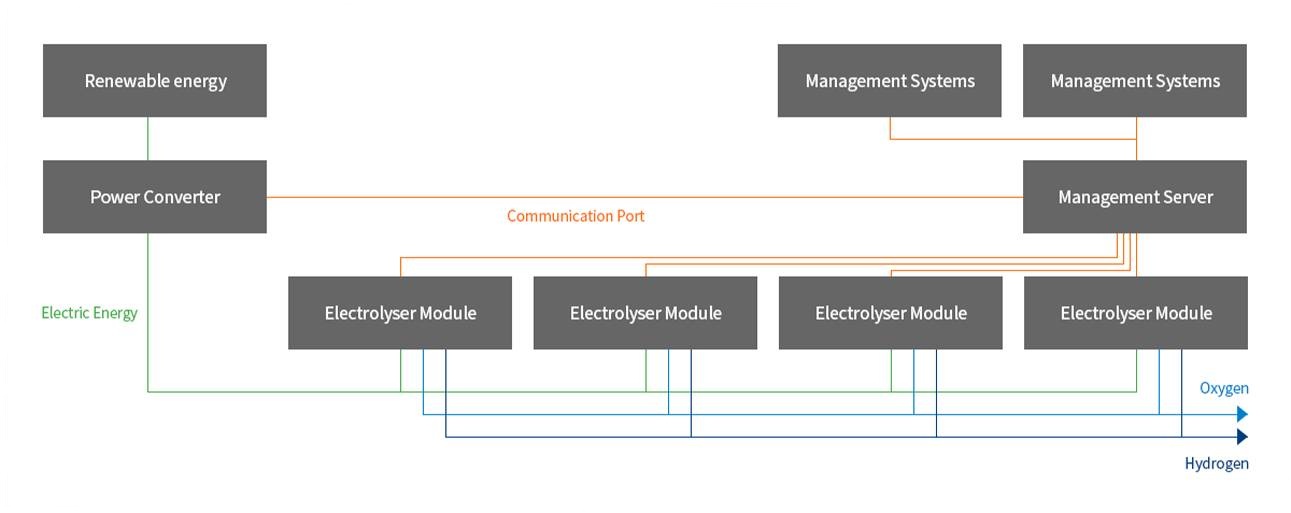

Monitoring and Management Systems

monitoring systems chart

The system can extend to 200 modules (2MW)

Energy storage system

Electrolyser/Fuel Cell System

Illustration of a hydrogen processing system with pipes and tanks

Electrolyser

Electric Supply

Illustration of a hydrogen production facility

Hydrogen Tank

Storage H2 Gas

Illustration of a hydrogen storage tank

Fuel cell

Electric Generation
